Product Description
ORALITE® V32 SAE Reflectors

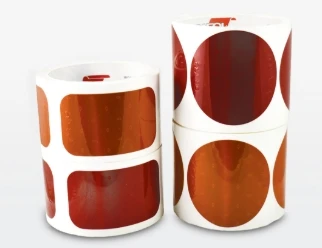

SAE J594Kiss-Cut on a Roll7-Year WarrantyPeel-and-stick prismatic reflectors in SAE red and amber, kiss-cut on a roll in 2" x 3½" rectangles or 3" circles. They conform to the photometric requirements of SAE J594 and replace bolt-on plastic reflectors on trucks, trailers, utility bodies and mobile equipment — with no drilling, no hardware and nothing to snap off.
Why V32
- SAE J594 photometrics. Conforms to the photometric performance requirements of SAE J594 (JUN2018), with nighttime color per SAE J578.
- No drilling, no hardware. Aggressive high-tack pressure-sensitive adhesive — just peel and squeegee on. Nothing to break off and no holes in the body.
- Ultra-thin and conformable. Monolayer construction no more than 0.006" thick. Per ORAFOL, conforms to complex curves, rivets and corrugations.
- No edge sealing. Per ORAFOL, the mono-layered construction needs no edge sealing, withstands high-pressure washing and resists edge lift.
- Impact resistant. Per ORAFOL, maintains reflectivity after impact — no cracked lens to replace.
- Fast to install in volume. Kiss-cut on rolls of 100 or 500 for production lines and fleet shops.
Common Uses
- Rear (red) and side (amber) reflectors on trucks, trailers and box bodies
- Utility and service bodies, dump bodies, tool boxes
- Upfitter and body-builder production lines
- Replacing broken or missing plastic reflectors during fleet maintenance
- Farm, construction and mobile industrial equipment
Sizes & Part Numbers
| Shape / Size | Per Roll | Red | Amber (Yellow) |
|---|---|---|---|
| 2" x 3½" rectangle | 100 | V32-1249-020034 | V32-1749-020034 |
| 2" x 3½" rectangle | 500 | V32-1249-020168 | V32-1749-020168 |
| 3" circle | 100 | V32-1249-030026 | V32-1749-030026 |
All reflectors are kiss-cut on a liner. The 500-count roll is available in rectangles only.
Specifications
| Product | ORALITE® V32 SAE Reflectors |
|---|---|
| Manufacturer | ORAFOL Americas |
| Photometrics | Conforms to SAE J594 JUN2018 |
| Nighttime color | Conforms to SAE J578 APR2020 |
| Construction | Smooth, high-gloss, abrasion- and weather-resistant UV-stabilized microprismatic monolayer |
| Thickness | 0.006" (0.15 mm) maximum |
| Colors | Red, Amber (Yellow) |
| Shapes | 2" x 3½" rectangle; 3" circle |
| Adhesive | Aggressive high-tack pressure-sensitive; peel-off release liner |
| Specular gloss | ≥40 at 85° (ASTM D523) |
| Min. application temp | 50°F air and surface |
| Warranty | 7 years (ORAFOL Americas) |
| Quality | ISO 9001:2015 manufacturing; batch traceable by roll number |
Application
- Apply only when both air and surface are 50°F or warmer.
- The surface must be clean and dry.
- Peel the reflector from the liner, position it and press down with a squeegee.
- If a bubble is trapped, prick it with a pin and squeegee the air toward the hole.
FAQ
Red or amber?
As a general rule, red goes on the rear and amber goes on the sides toward the front. Check the requirements for your vehicle type before ordering.
Rectangle or circle?
Both come in the same red and amber. Rectangles (2" x 3½") are offered in 100 or 500 per roll; 3" circles come 100 per roll. Pick the shape that fits the mounting area or matches the reflectors you're replacing.
Are these the same as conspicuity tape?
No. Conspicuity tape (such as DOT-C2 red/white) runs in strips along the sides and rear of trailers. V32 reflectors are individual SAE reflex reflectors — the stick-on alternative to bolt-on plastic reflectors.
Can I install them in winter?
Only when the air and surface are at least 50°F. On a cold day, warm the vehicle indoors first.
How long do they last?
ORAFOL backs V32 with a 7-year warranty. Contact ORAFOL Americas or us for warranty terms.
WARNING: This product may expose you to chemicals which are known in the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
ORALITE® is a registered trademark of ORAFOL Europe GmbH.
