Product Description

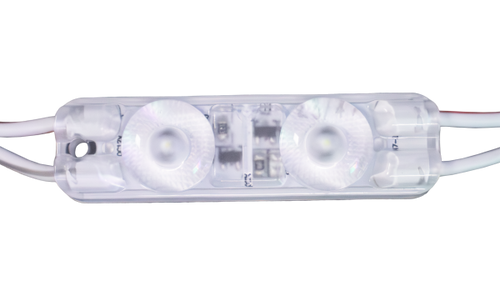

Maximize brightness and minimize energy consumption with the Allanson LEDGEN3 12VDC 0.72W Modules in 7000K True White. Engineered for superior performance, each module delivers an impressive 170 lumens per watt with a wide 170° beam angle to ensure even illumination across your signage or display project.
Ideal for shallow-depth sign boxes (recommended depth: 2”–9.8”), these LED modules feature high-transmittance optics, IP67-rated protection, and a long lifespan, making them the go-to solution for both indoor and outdoor applications.
Designed with efficiency in mind, this 40-pack is perfect for scalable installations, compatible with a variety of 12V power supply units.
Key Features:
-
High Efficiency: 170 lumens per watt
-
Wide 170° Beam Angle: Superior light spread with fewer modules
-
True White 7000K: Crisp, clean illumination
-
IP67 Rated: Fully sealed against dust and water
-
Low Power Draw: 0.72 watts per module
-
Compact Size: Easy to install in tight spaces
-
Long Lifespan: Reliable performance backed by a 5-year warranty
Recommended Applications:
-
Channel letters
-
Box signs
-
Backlit graphics
-
Indoor/outdoor architectural lighting
-
Retail and commercial displays
Technical Specifications:
| Specification | Value |
|---|---|
| Power | 0.72W |
| Voltage | 12VDC |
| Lumen Output | 122 lumens/module |
| Color Temp | 7000K (True White) |
| Beam Angle | 170° |
| Operating Temp | -40°C to +60°C |
| Protection Rating | IP67 |
| Module Dimensions | 1.94” x 0.52” x 0.34” |
| Recommended Depth | 2”–9.8” |
| Warranty | 5 Years |
| Packaging | 40 modules per bag (12V) |
Power Supply Compatibility:
Allanson offers a full line of compatible 12V power supplies, including 60W, 120W, and 180W models. Each power supply supports up to 83 modules at 100% load—we recommend operating at 80% capacity for optimal longevity.
Why Buy from Kirin Global Supplies?
As an authorized Allanson distributor, Kirin Global Supplies ensures:
-
Fast and reliable shipping
-
Expert customer support
-
Competitive pricing
-
Access to Allanson’s full product line
