Product Description

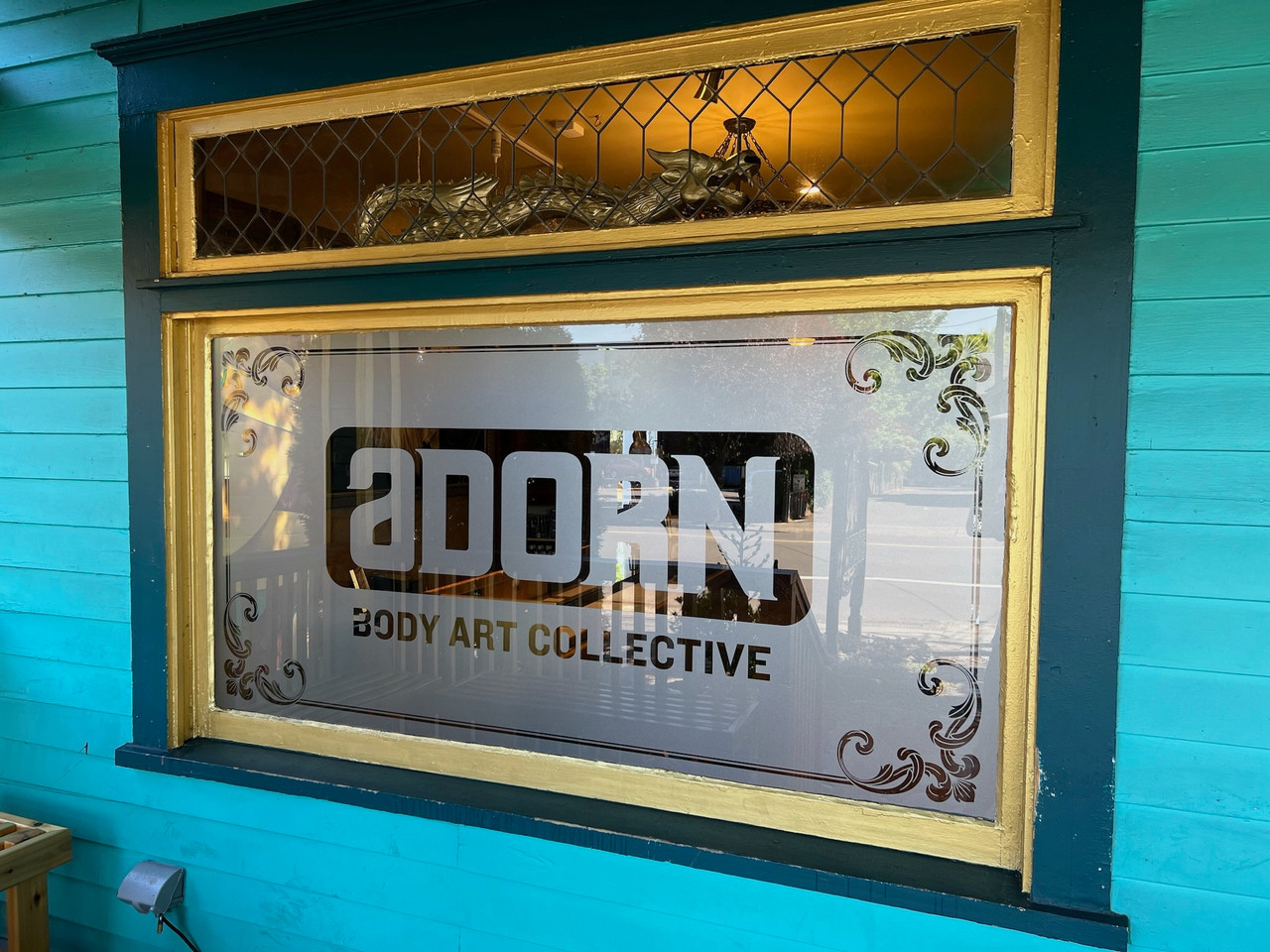

Best for: shop window and glass door decoration, conference room and office glazing, storefront address and hours lettering, bank and medical office privacy bands, retail branding on glass, and any application where a cut design needs to read as etched glass rather than white vinyl.
Why fabricators reach for 8510
Technical data
| Film | Calendered PVC with polymeric non-migrating plasticisers |
|---|---|
| Surface | Medium glossy, inhibits undesired reflection |
| Thickness (film only) | 80 micron (approx. 3 mil), average |
| Adhesive | Solvent polyacrylate, permanent |
| Release liner | Silicone-coated PE paper both sides, 137 g/m², engineered for weed-stripping |
| Adhesive power (FINAT TM 1, 24h) | 18 N/25 mm on glass; 16 N/25 mm on acrylic glass |
| Dimensional stability (FINAT TM 14) | Adhered to glass — no measurable cross-direction shrinkage; 0.2 mm max in length |
| Temperature resistance | Adhered to glass, -40°C to +90°C (-40°F to +194°F), no variation |
| Resistance to cleaning agents | Adhered to glass, 8 h in 0.5% household cleaning agents at room temp and 65°C, no variation |
| Fire behavior (DIN EN 13501-1) | Flame resistant, classification B – s1,d0, on glass of moulded density ≥ 2250 kg/m³ (indoor application) |
| Tensile strength (DIN EN ISO 527) | Min. 19 MPa along and across |
| Elongation at break (DIN EN ISO 527) | Min. 130% along and across |
| Application temperature | Above +8°C (46°F) |
| Application method | Wet application recommended |
| Service life (specialist application) | 7 years, vertical outdoor exposure |
| Shelf life | 2 years in original packaging at 20°C (68°F) and 50% relative humidity |
| Cutting | Suitable for plotter cutting systems |
| Batch traceability | ISO 9001 traceable by roll number |
Service life figures reference vertical outdoor exposure under the normal climate of Central Europe. Values are typical averages, not specifications. ORACAL® is a registered trademark of ORAFOL Europe GmbH.
Colors and structures
| Color | Structure | Availability |
|---|---|---|
| 090 Silver | Fine | Stocked |
| 091 Gold | Fine | Special order |
| 094 Silver | Coarse | Special order |
| 095 Gold | Coarse | Special order |
Fine vs. coarse: fine structure reads as a smooth, uniform acid-etch — the safer choice for small lettering, logos, and dense cut detail. Coarse structure has a more pronounced grain that mimics sandblasted glass and shows best across larger open areas like privacy bands and full-panel treatments.
Roll sizes: 15", 24", and 48" widths in 10 yd and 50 yd lengths. Special-order colors ship on ORAFOL's production schedule — call for current lead time before you commit to an install date.
Installation notes
- Wet apply. ORAFOL recommends wet application for this film. It gives you repositioning time on large panels and is the difference between a clean storefront job and a re-do.
- Apply above 46°F. Cold glass fights the adhesive. In winter installs, warm the glass surface before you start.
- Prep matters. The glass must be thoroughly clean and free of dust, grease, and contamination. Permanent adhesives telegraph every speck you leave behind.
- Fresh paint and lacquer need three weeks. If the film touches recently lacquered or painted framing, let it dry and fully cure for at least three weeks, and test lacquer/paint compatibility yourself before applying.
- Permanent means permanent. This is a solvent polyacrylate permanent adhesive at 18 N/25 mm on glass. Plan on a scraper and adhesive remover at end of life — if the customer needs a removable film, tell us and we'll point you at a different product.
Compliance and handling
- RoHS compliant per EU Directive 2011/65.
- Contains no REACH Candidate List substances of very high concern above 0.1% w/w (film and adhesive).
- Not classified as a dangerous product for transportation. No H or P phrases; no PPE required for normal handling.
- Waste class similar to household waste; recycle per local regulations.
- ORAFOL notes that direct contact with the tacky adhesive surface should be minimized as a general precaution.
Full Technical Datasheet and Safety Data Sheet available on request — email Sales@kgsupplies.com.
Compare and pair
- All etched glass vinyl — if you need a white/frost look or a dry-apply air-egress film, compare against the alternatives here.
- Application tools and fluid — squeegees, application solution, and scrapers for wet installs.
- Architectural window films — for solar control and security glazing on the same job.
