Product Description

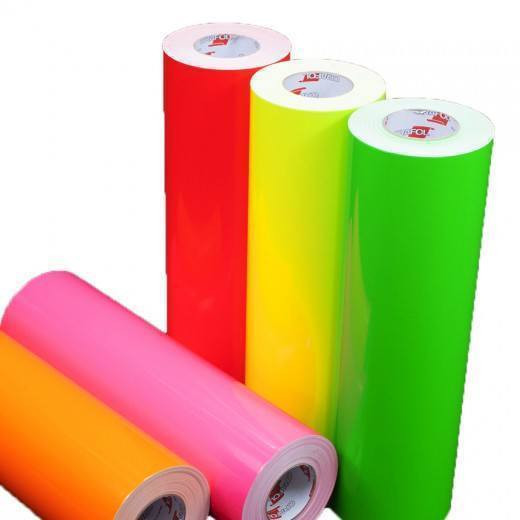

ORACAL 6510 is a 4-mil fluorescent cast PVC film built for graphics that have to be seen — in full daylight, at dawn and dusk, and in rain, fog and other poor-visibility conditions. It is the short-term member of ORAFOL's fluorescent cast line: bright, cuttable, weedable, and priced for jobs measured in months rather than years.
At 24" x 50 yd this is the shop workhorse — 300 square feet, wide enough for door copy, truck numbers and most P.O.P. panels, and narrow enough to load on any 24" plotter without wrestling a wide roll. It is also the best-selling width in the line, which is why we keep it on the shelf.
Where it works
- Car, truck, van and trailer graphics
- Motorsport and competition numbers
- Point-of-purchase displays and retail signage
- Labels, decals and window copy
- Emergency vehicle and boat safety graphics
- Bicycle, helmet and personal safety markings
ORAFOL rates the film for flat and conformable short-term applications. It is a cast film, so it cuts and weeds cleanly and handles gentle curves and corrugations — but it is not a wrap film and is not rated for deep recesses or compound curves.
Outdoor durability by color
| Color | ORAFOL item no. | Minimum life expectancy (unprinted, vertical) |
|---|---|---|
| Fluorescent Yellow | 029 | 2 years |
| Fluorescent Orange | 037 | 1 year |
| Fluorescent Red Orange | 038 | 1 year |
| Fluorescent Red | 039 | 1 year |
| Fluorescent Pink | 046 | 1 year |
| Fluorescent Green | 069 | 1 year |
Durability figures are ORAFOL's published minimum life expectancy for unprinted film on vertical surfaces, Climate Zone 1. Fluorescent pigments are inherently less UV-stable than standard pigments — under the high-UV, high-heat exposure typical of Arizona, Nevada and inland Southern California, expect the fluorescent effect to dull sooner than the published figure. Horizontal and sloped surfaces reduce service life further. Screen colors are approximate; ask us for a sample before committing to a color match.
Technical data
| Film construction | High-performance fluorescent cast PVC |
|---|---|
| Thickness | 4 mil (film only, without liner and adhesive) |
| Finish | Semi-gloss |
| Adhesive | Clear, solvent-based, permanent |
| Adhesive power | 3.5 lb/in on stainless steel (FINAT TM-1, 24 hr average) |
| Release liner | 84# silicone-coated paper |
| Temperature resistance | -40°F to +221°F on aluminum, no variation |
| Minimum application temperature | 46°F |
| Dimensional stability | Adhered to steel: no shrinkage across; less than 0.012" in length (FINAT TM-14) |
| Tensile strength | Min. 13 MPa along and across (DIN EN ISO 527) |
| Elongation at break | Min. 100% along and across (DIN EN ISO 527) |
| Fire behavior | Self-extinguishing on steel (DIN 75200) |
| Fire rating | ASTM E84-07 Class A |
| Print compatibility | Screen printing and thermal transfer only |
| Shelf life | 2 years in original packaging at 68°F / 50% RH |
| Roll size (this listing) | 24" x 50 yd (150 ft) — 300 sq ft |
| Also available | 15" (punched), 30" and 48" widths; every width in 10 yd and 50 yd |
Application tapes
ORAFOL recommends ORATAPE HT55 (paper) and ORATAPE MT95 (clear, conformable) for transferring cut 6510 graphics. HT55 is the everyday choice for lettering and numbers; MT95 is worth the upgrade when you need to see registration through the tape or the graphic has to lay into a curve.
Surface prep
Clean the substrate completely — dust, grease, wax and residue all cost you adhesion. Freshly painted or lacquered surfaces must be fully cured before application, and paint and clear-coat compatibility should be tested on a small area first. Roll numbers support batch traceability under ISO 9001, so keep the label if the job may need color-matched additions later.
Common questions
Is 6510 the same as 7510?
No. Both are fluorescent cast PVC films with the same six colors, and they look nearly identical the day they go up. The difference is service life: 6510 gives 1 year (2 years in fluorescent yellow), while 7510 gives 2 years (3 years in fluorescent yellow). Buy 6510 for seasonal promotions, event graphics, race weekends and temporary safety markings. Buy 7510 when the graphic has to stay bright through more than one summer.
Will fluorescent vinyl glow in the dark?
No. Fluorescent film converts UV energy in daylight into visible light, which is why it looks unnaturally bright at dawn, dusk and under overcast skies. It needs a light source. For genuine glow-in-the-dark performance, look at photoluminescent films instead.
Can I laminate it?
An overlaminate adds abrasion resistance, but it also filters the UV that makes the film fluoresce, which mutes the effect. If the graphic will take physical abuse, laminate it and accept a duller appearance. If brightness is the whole point, leave it unlaminated.
Should I buy the 50 yard roll or the 10 yard?
The 50 yard roll runs roughly 25% cheaper per square foot than the 10 yard in the same width. If you turn a color more than once or twice a year, the 50 yard pays for itself. If you are testing a color or covering a one-off job, start with the 24" x 10 yd roll.
Ordering and shipping
Orders placed on stock in our Phoenix warehouse ship the same or next business day. We deliver overnight throughout Arizona, Nevada, New Mexico and Colorado on our own trucks and freight lanes, ship nationwide via UPS, and offer will-call pickup at 3611 W. Cambridge Ave., Phoenix.
If the color you need is not on the shelf when you order, we will fill it direct from ORAFOL. Factory direct-ship orders add roughly 3 to 5 business days and cannot be cancelled, changed or returned once released to the manufacturer — we will contact you before that happens so you can decide.
Buying in volume, or need this slit to a custom width? Email sales@kgsupplies.com or call (602) 272-8655 for a quote.
WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
ORACAL and ORATAPE are registered trademarks of ORAFOL Europe GmbH. Specifications from the ORAFOL Americas ORACAL 6510 technical datasheet, rev. 05/2026, and are subject to change without notice.
