Product Description
Next-gen Mimaki UV-LED roll-to-roll printer in 64" width. Instant curing, white & clear ink capability, 4pl variable dot precision, and ENERGY STAR efficiency — at a price point that opens UV-LED to growing sign shops.

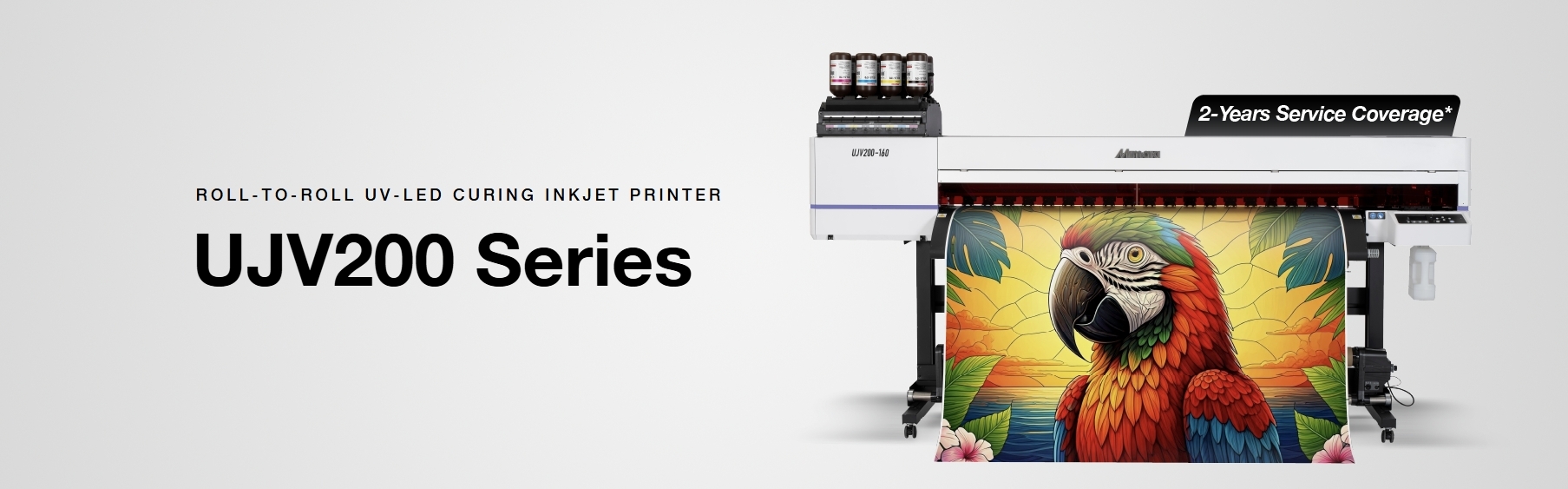

Mimaki UJV200 Series Roll-to-Roll UV-LED Inkjet Printer
The Mimaki UJV200 Series brings premium UV-LED roll-to-roll printing within reach for production sign shops, print service providers, and graphics businesses ready to step up from solvent or latex. Available in 54-inch (UJV200-130) and 64-inch (UJV200-160) widths, this next-generation platform delivers instant UV curing, exceptional color quality, and the durability needed for floor graphics, backlit displays, and multi-layer specialty applications — without the heat, ventilation demands, or hidden operating costs of competing technologies.
Why UV-LED over latex or solvent? Instant curing eliminates wait times before lamination or finishing. No high heat means heat-sensitive substrates print perfectly. Lower power consumption cuts utility costs. And SVHC/CMR-free inks create a safer pressroom — no special ventilation required.
Key Features & Benefits
- Instant UV-LED curing — no drying delays, prints ready to finish immediately
- Heat-sensitive media compatible — no high-heat damage to delicate substrates
- Variable Dot Technology down to 4 picoliters for photo-quality detail
- DAS2 automated adjustment — faster setup, less media waste
- Lamifit™ Technology — silvering-free lamination on white ink prints
- Clear ink capability for gloss, matte, and tactile special effects
- Multi-layer printing without pullback for day/night backlit graphics
- Superior abrasion resistance — certified for floor graphic applications
- 5× faster cleaning cycles than previous generations
- Low-odor, SVHC/CMR-free inks for a safer work environment
- ENERGY STAR certified — lower operating costs vs. latex systems
- MAPS4, NCU, and Nozzle Recovery core Mimaki technologies built in
Built for Demanding Production Environments
The UJV200 Series is engineered for shops that need reliable, repeatable output across a wide range of jobs. The single on-demand piezo printhead drives resolutions up to 1200 dpi, while the ELS-170 ink set delivers vibrant CMYK plus white and clear options for layered work. Print configurations include CMYK, CMYK + Cl + Cl + W + W, CMYK + W + W, and others — giving you the flexibility to handle window clings, transparent films, dark substrates, and high-end specialty graphics on a single platform.
Mimaki’s Mimaki Advanced Pass System (MAPS4) minimizes banding and feed irregularities. The Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) automatically detect and compensate for nozzle issues during unattended production, protecting long jobs from reprints. DAS2 (Dot Adjustment System) automates media-specific calibration, reducing setup time and operator error.
Applications
Storefront & Window Graphics
Vertical & Retractable Banners
Wall Art & Décor
Backlit Display Graphics
Floor Graphics & Decals
Vehicle Graphics & Wraps
Trade Show & POP Displays
Multi-Layer Specialty Prints
Heat-Sensitive Substrates
Specifications
| Printhead | Single on-demand piezo head |
|---|---|
| Print Resolutions | 600 dpi, 900 dpi, 1200 dpi |
| Maximum Print Width | UJV200-160: 63.4 in (1610 mm) UJV200-130: 53.5 in (1360 mm) |
| Print Speed (4-Color) | UJV200-160 High Speed: 269.1 sq ft/hr (25.0 sq m/hr) UJV200-160 Standard: 150.7 sq ft/hr (14.0 sq m/hr) UJV200-130 High Speed: 236.8 sq ft/hr (22.0 sq m/hr) UJV200-130 Standard: 139.9 sq ft/hr (13.0 sq m/hr) |
| Media Thickness | Up to 2 mm |
| Maximum Roll Weight | 55 lbs (25 kg) |
| Ink Type | ELS-170 UV-curable ink — CMYK, White, Clear (1L bottles) |
| Ink Configurations | CMYK / CMYK + Cl + Cl + W + W / CMYK + W + W |
| Interface | Ethernet 1000BASE-T (recommended), USB 2.0 Hi-Speed |
| Power Supply | AC 100-120V (11A) or AC 200-240V (5.5A) |
| Power Consumption | Max 1320W · Standard 550W · Min 4.5W |
| Operating Environment | 68–86°F (20–30°C), 35–65% humidity Recommended: 68–77°F (20–25°C) |
| Dimensions (W × D × H) | UJV200-160: 109.1″ × 29.4″ × 55.3″ UJV200-130: 99.2″ × 29.4″ × 55.3″ |
| Weight | UJV200-160: 352 lb (160 kg) UJV200-130: 342 lb (155 kg) |
| Certifications | IEC 62368-1, CE (EMC, Low Voltage, Machinery Directive, RoHS), REACH, VCCI Class A, FCC Class A, RCM, EAC, ENERGY STAR |
Available Options & Accessories
- OPT-J0422 — Nozzle Check Unit (NCU)
- OPT-J0502 — Leveling Foot (supports up to 45 kg media)
- OPT-J0545 — Ionizer 1600 (anti-static for film media)
- OPT-01038 — UJV200 Ionizer Connection Kit
Compatible Inks
| Color | Part Number (1L Bottle) |
|---|---|
| Cyan | ELS17-C-BA |
| Magenta | ELS17-M-BA |
| Yellow | ELS17-Y-BA |
| Black | ELS17-K-BA |
| White | ELS17-W-BA |
| Clear | ELS17-CL-BA |
Frequently Asked Questions
What’s the difference between the UJV200-130 and UJV200-160?
The number indicates maximum print width in centimeters. The UJV200-130 prints up to 53.5 inches (1360 mm), and the UJV200-160 prints up to 63.4 inches (1610 mm). The 160 is also slightly faster in high-speed mode. Both share the same printhead, ink system, and feature set — the choice typically comes down to the maximum job size you produce.
How does UV-LED compare to latex or eco-solvent for ongoing operating cost?
UV-LED printers like the UJV200 use significantly less power than latex systems, which rely on high-heat curing. There’s no warm-up time, no purge cycles between media changes, and ink consumption can be reduced 5 levels via the user-controlled ink optimization. Combined with ENERGY STAR certification, total cost of ownership is typically lower than comparable latex platforms.
Can the UJV200 print on heat-sensitive materials?
Yes. Because UV-LED cures with cool LED light rather than heat, the UJV200 prints cleanly on thin films, synthetic substrates, and other media that would warp, shrink, or distort in a latex printer. This dramatically expands the range of materials you can offer customers.
Is white ink available, and how is it used?
Yes. White ink is included in the ELS-170 ink set and is essential for printing on clear films, dark substrates, and backlit applications. The UJV200 supports multi-layer white ink workflows (CMYK + W + W, or CMYK + Cl + Cl + W + W) so you can produce day/night graphics and high-opacity prints on a single pass.
What is Clear ink used for?
Clear (varnish) ink lets you add tactile spot gloss, full matte coatings, textured finishes, and premium decorative effects. It’s a profit-margin upgrade for high-end signage, packaging mockups, and specialty graphics.
What is Lamifit™ Technology?
Lamifit is Mimaki’s proprietary white ink technology that eliminates the “silvering” effect that can occur when laminating over white ink prints. The result is cleaner, more consistent finished graphics with no extra processing steps.
What kind of warranty does the UJV200 come with?
The UJV200 is covered by Mimaki USA’s standard manufacturer warranty. Contact KG Supplies for current warranty terms, extended service options, and installation requirements.
Does KG Supplies offer installation, training, and support?
Yes. As an authorized Mimaki dealer, KG Supplies coordinates delivery, installation, operator training, and ongoing technical support across the Southwest. Call us at the number listed in the header to discuss your application and we’ll walk you through the full process.
How do I order ink and supplies for the UJV200?
KG Supplies stocks ELS-170 ink in all six colors (CMYK, White, Clear) in 1L bottles. We recommend setting up a standing order or autoship to ensure you never run out mid-production — ask about our fleet customer discounts.
Why Buy Your Mimaki UJV200 from KG Supplies?
- Authorized Mimaki dealer — full manufacturer warranty and certified support
- Southwest regional coverage with overnight delivery across AZ, NV, NM, and CO
- 40+ years serving sign and graphics professionals
- Phone support and price matching — talk to a real person who knows the equipment
- Full supply chain — printer, ink, media, laminators, and finishing all from one source
Ready to talk specs, financing, or installation? Call KG Supplies at the number above or request a quote — we’ll match your application to the right configuration and get you a full landed cost including delivery and setup.
