Product Description

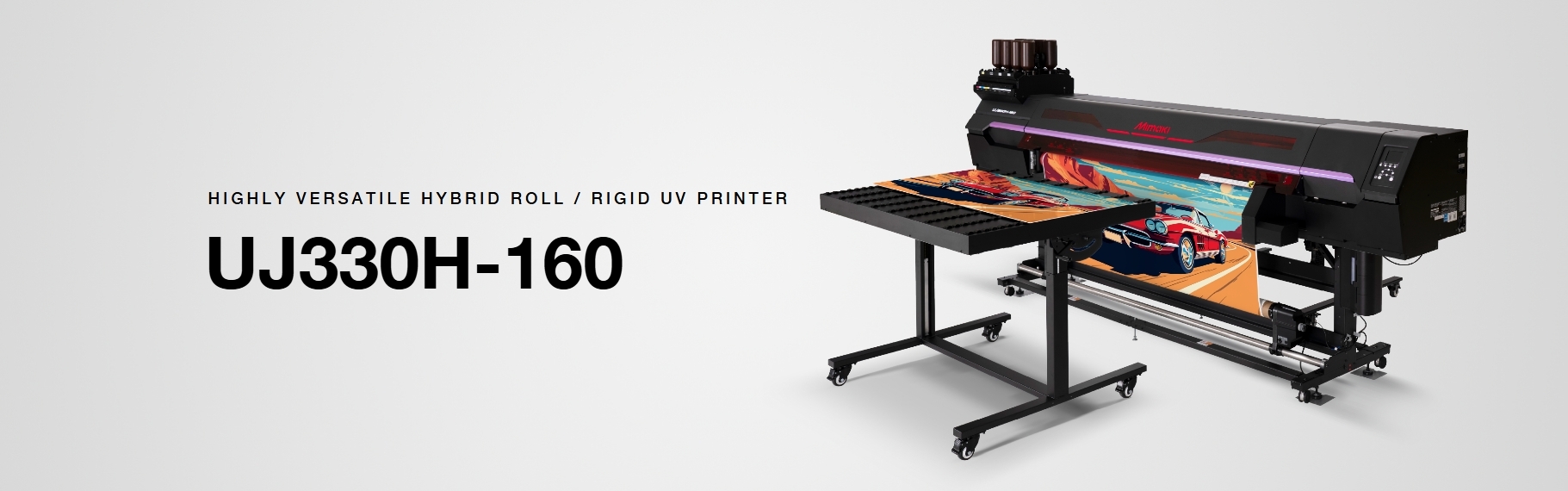

Mimaki UJ330H-160 Hybrid UV-LED Roll & Rigid Printer
The Mimaki UJ330H-160 is the most advanced hybrid printer Mimaki has ever built — a single platform that handles both roll media up to 64 inches wide and rigid boards up to 5′ × 10′ and 2 inches thick. For sign shops and production printers that want the flexibility of a flatbed and the throughput of a roll-to-roll without buying two separate machines, this is the answer.
Powered by Mimaki’s flagship 330 Series print engine, dual staggered printheads, and resolutions up to 1200 × 1800 dpi, the UJ330H-160 delivers production-grade quality across an enormous range of jobs — from vehicle wraps and window graphics to ACM sign panels, real estate signs, canvas portraits, and high-margin specialty work with 5-layer printing and 2.5D texture effects.
One footprint. Two production capabilities. Switch between rigid board printing and roll-to-roll in minutes. No need to dedicate floor space to a separate flatbed. No capital tied up in a second print engine. The UJ330H-160 lets shops add rigid capability without doubling their equipment cost.
Key Features & Benefits
- True hybrid design — rigid up to 5′ × 10′ and roll up to 64″
- 2-inch (50 mm) head clearance for thick rigid substrates
- Dual staggered printheads with 4 print bars each
- Up to 1200 × 1800 dpi resolution for photo-quality output
- 22 sq m/hr (236.8 sq ft/hr) production throughput
- Vacuum belt transport — no pinch rollers, no marks on thin media
- 5-layer multi-layer printing for day/night backlits and 2.5D textures
- 8-color capability — CMYK + Light Cyan + Light Magenta + White + Clear
- LamiFit™ technology — eliminates silvering on laminated board prints
- PICT cloud monitoring — check ink levels and job status from your phone
- Auto-Vacuum & lock rollers for heavy rigid material handling
- 1.6 kW max power draw — far less than latex (5 kW) or eco-solvent (2.9 kW)
- SVHC/CMR-free UV inks for operator safety
- ENERGY STAR certified — lower operating costs over the machine’s lifetime
Why Hybrid? The Production Math
A dedicated flatbed at this size typically runs $50K–$80K+. A dedicated 64-inch roll-to-roll runs another $15K–$25K. Most shops can’t justify both, so they either turn down rigid work or outsource it — losing margin and lead time on every job.
The UJ330H-160 at $39,995 solves that gap. One operator. One RIP workflow. One service contract. And the flexibility to chase any job that walks in the door — ACM signs, coroplast yard signs, foam board displays, canvas wraps, vehicle graphics, window perforated film, real estate signage, and gallery-quality decor.
Quick comparison — total power consumption (max):
• Mimaki UJ330H-160 (UV-LED): 1.6 kW
• Comparable Eco-Solvent printer: 2.9 kW
• Comparable Latex printer: 5.0 kW
Over a 40-hour production week, the UV-LED platform saves substantial utility cost — and runs cooler, so your shop HVAC works less too.
• Mimaki UJ330H-160 (UV-LED): 1.6 kW
• Comparable Eco-Solvent printer: 2.9 kW
• Comparable Latex printer: 5.0 kW
Over a 40-hour production week, the UV-LED platform saves substantial utility cost — and runs cooler, so your shop HVAC works less too.
Built for Production: Core Mimaki Technologies
The UJ330H-160 incorporates the full stack of Mimaki’s production-grade automation:
- NCU (Nozzle Check Unit) — automatic nozzle detection during unattended runs
- NRS (Nozzle Recovery System) — compensates for clogged nozzles automatically
- DAS2 (Dot Adjustment System) — automated media calibration, less waste
- VDT (Variable Dot Technology) — precise dot sizing for smooth gradients
- MWDT (Mimaki Waveform Drive Technology) — consistent ink ejection
- MAPS4 (Mimaki Advanced Pass System) — banding suppression
- PICT — cloud-based remote monitoring from any device
- Mimaki Circulation Technology — prevents white ink settling
- Uninterrupted Ink Supply System — swap bottles mid-job, no downtime
Applications
Aluminum Composite Signs (ACM)
Real Estate Signs
Yard Signs & Coroplast
Vehicle Graphics & Wraps
Window & Storefront Graphics
Canvas Wraps & Wall Art
Foam Board & PVC Displays
Backlit & Multi-Layer Signage
2.5D Textured Prints
Door Prints & Wall Decor
Trade Show & POP Displays
Coffee Shop & Retail Branding
Specifications
| Configuration | Hybrid Roll & Rigid UV-LED Inkjet Printer |
|---|---|
| Printheads | 2 staggered heads, 4 print bars per head |
| Print Resolutions | Y: 600, 1200 dpi · X: 600, 900, 1200, 1800 dpi |
| Print Speed (4-Color Mode) | 236.8 sq ft/hr (22.0 sq m/hr) max |
| Maximum Rigid Print Area | 5 ft × 10 ft |
| Maximum Roll Media Width | 64 in (1620 mm) |
| Maximum Media Thickness | 2 in (50 mm) |
| Maximum Media Weight | Rigid: 55 lbs (25 kg) · Roll: 99 lbs (45 kg) |
| Ink Type | ELS-170 UV-curable ink (CMYK, Light Cyan, Light Magenta, White, Clear) |
| Ink Configurations | CMYK×2 / CMYK + Cl + W + W / CMYK + Lc + Lm + W + W |
| Ink Package | 1L bottle |
| Interface | Ethernet 1000BASE-T (recommended), USB 2.0 Hi-Speed |
| Power Supply | AC 100–120V / 200–240V ±10%, ×2, 50/60Hz |
| Power Consumption | Max 1600W · Average 800W · Sleep <4.5W |
| Operating Environment | 68–86°F (20–30°C), 35–65% humidity |
| Dimensions (W × D × H) | Without tables: 126.9″ × 30.9″ × 55.9″ With one table set: 126.9″ × 104.9″ × 55.9″ With two table sets: 126.9″ × 185.5″ × 55.9″ |
| Weight | 849 lbs (386 kg) |
| Certifications | IEC 62368-1, CB, CE (EMC, Low Voltage, Machinery Directive, RoHS), REACH, VCCI Class A, FCC Class A, KC, RCM, EAC, UKCA, ENERGY STAR |
Compatible Inks (ELS-170, 1L Bottles)
| Color | Part Number |
|---|---|
| Cyan | ELS170-C-BA |
| Magenta | ELS170-M-BA |
| Yellow | ELS170-Y-BA |
| Black | ELS170-K-BA |
| Light Cyan | ELS170-LC-BA |
| Light Magenta | ELS170-LM-BA |
| White | ELS170-W-BA |
| Clear | ELS170-CL-BA |
Frequently Asked Questions
What does “hybrid” mean — can it really do both roll and rigid?
Yes, this is a true hybrid platform. The UJ330H-160 uses a vacuum belt transport system that holds both flexible roll media and rigid boards up to 2 inches thick. Switching between modes takes minutes, not a complete reconfiguration. The optional front and rear tables extend the rigid print bed to handle 5′ × 10′ panels like aluminum composite (ACM), coroplast, foam board, MDO, PVC, and Dibond.
How does this compare to the UJV200 Series?
The UJV200 Series is a dedicated roll-to-roll printer at a lower price point ($16,995 for the UJV200-160). The UJ330H-160 is a hybrid that adds rigid board capability, dual printheads, faster speeds, higher resolution (1800 dpi vs 1200 dpi), light cyan/light magenta inks, 5-layer multi-layer printing, and the PICT cloud monitoring system. Choose the UJV200 if you only need roll-to-roll. Choose the UJ330H-160 if you want one machine for everything.
What is LamiFit™ Technology?
LamiFit is Mimaki’s solution to the “silvering” problem that occurs when laminating over board prints — trapped air bubbles between the print and the laminate film. LamiFit automatically fills the blank areas of your print with clear ink, keeping the surface topography flat and eliminating those bubbles. The result is cleaner laminated graphics with no extra processing.
What is PICT and why does it matter?
PICT is Mimaki’s cloud-based printer monitoring platform. From your phone or any web browser, you can check ink levels, current job status, error alerts, and production history in real time. For shops running unattended overnight jobs or with multiple Mimaki machines, this is a significant operational advantage — you find out about issues immediately, not when you walk in the next morning.
Can it print white and clear ink for specialty applications?
Yes. The UJ330H-160 supports multiple white ink configurations and includes clear (varnish) ink for gloss, matte, and tactile effects. The 5-layer printing capability lets you build day/night backlits, second-surface window graphics, and 2.5D textured prints — all high-margin work that justifies the hybrid investment quickly.
What kind of rigid substrates can it print on?
Up to 2 inches thick and 55 lbs in weight, the UJ330H-160 handles virtually every common rigid substrate in the sign industry: aluminum composite (ACM/Dibond), coroplast, foam board (Gatorboard, Sintra), PVC, acrylic, MDO plywood, magnetics, styrene, and more. The Auto-Vacuum hold-down and front/rear lock rollers keep heavy panels stable during printing.
What are the space requirements?
The printer itself is roughly 127″ wide × 31″ deep × 56″ tall. With one set of feed tables, depth grows to about 105″. With both sets (front and rear), depth is about 185″. Plan for adequate clearance on all sides for media loading and operator access — we recommend a minimum 16′ × 10′ footprint for full hybrid operation.
Does the printer come with installation and training?
Yes. As your authorized Mimaki dealer, KG Supplies coordinates delivery, professional installation, and operator training. We’ll walk you through site requirements, electrical, environment, and freight before delivery so everything goes smoothly on install day.
What about financing?
Mimaki USA offers financing options for qualified buyers, and we can connect you directly with their finance team. For a $39,995 machine, typical lease payments make this very approachable for growing shops — often the monthly payment is less than what shops spend outsourcing rigid work elsewhere. Contact us for a personalized quote.
What ongoing supplies will I need?
ELS-170 UV-curable ink in 1L bottles (CMYK plus optional Light Cyan, Light Magenta, White, and Clear), cleaning solution, wiper blades, and replacement filters. KG Supplies stocks all consumables and can set you up on autoship or volume pricing so you never run out mid-job.
Why Buy Your Mimaki UJ330H-160 from KG Supplies?
- Authorized Mimaki dealer with full manufacturer warranty
- Southwest regional coverage — AZ, NV, NM, CO with overnight delivery
- 40+ years serving sign and graphics professionals
- Installation, training, and technical support coordinated locally
- Full supply ecosystem — ink, media, finishing, laminators all from one source
- Real phone support — talk to people who know the equipment and your business
- Price matching on qualifying competitor quotes
Ready to talk through the application, financing, or installation? Call KG Supplies or request a quote — we’ll work through your production mix, recommend the right ink configuration, and quote full landed cost including delivery, installation, and operator training.
