Description
The Hotronix® Air Fusion IQ® Heat Press 16" x 20" (Tabletop Version) is a compact powerhouse built for professional decorators who need automation, consistency, and advanced controls—without sacrificing space. This tabletop version offers the same air-powered performance and IQ® touchscreen technology as the full pedestal model but is designed to fit on your existing workstation.
Ideal for high-volume shops, this pneumatic heat press uses air pressure to deliver consistent, hands-free application with a swing-away upper platen for a safe, heat-free work area. The spacious 16" x 20" platen is perfect for t-shirts, hoodies, jackets, tote bags, and more, while the Fusion IQ® interface provides data insights, job tracking, and precise control over time, temperature, and pressure.
If you're ready to elevate your production without a full stand, this tabletop model gives you pro-level performance in a smaller footprint.
Key Features:
-
Air-Powered Automatic Pressing: Consistent pressure across garments with reduced operator fatigue
-
Tabletop Design: Mounts easily on workbenches or custom tables for maximum space flexibility
-

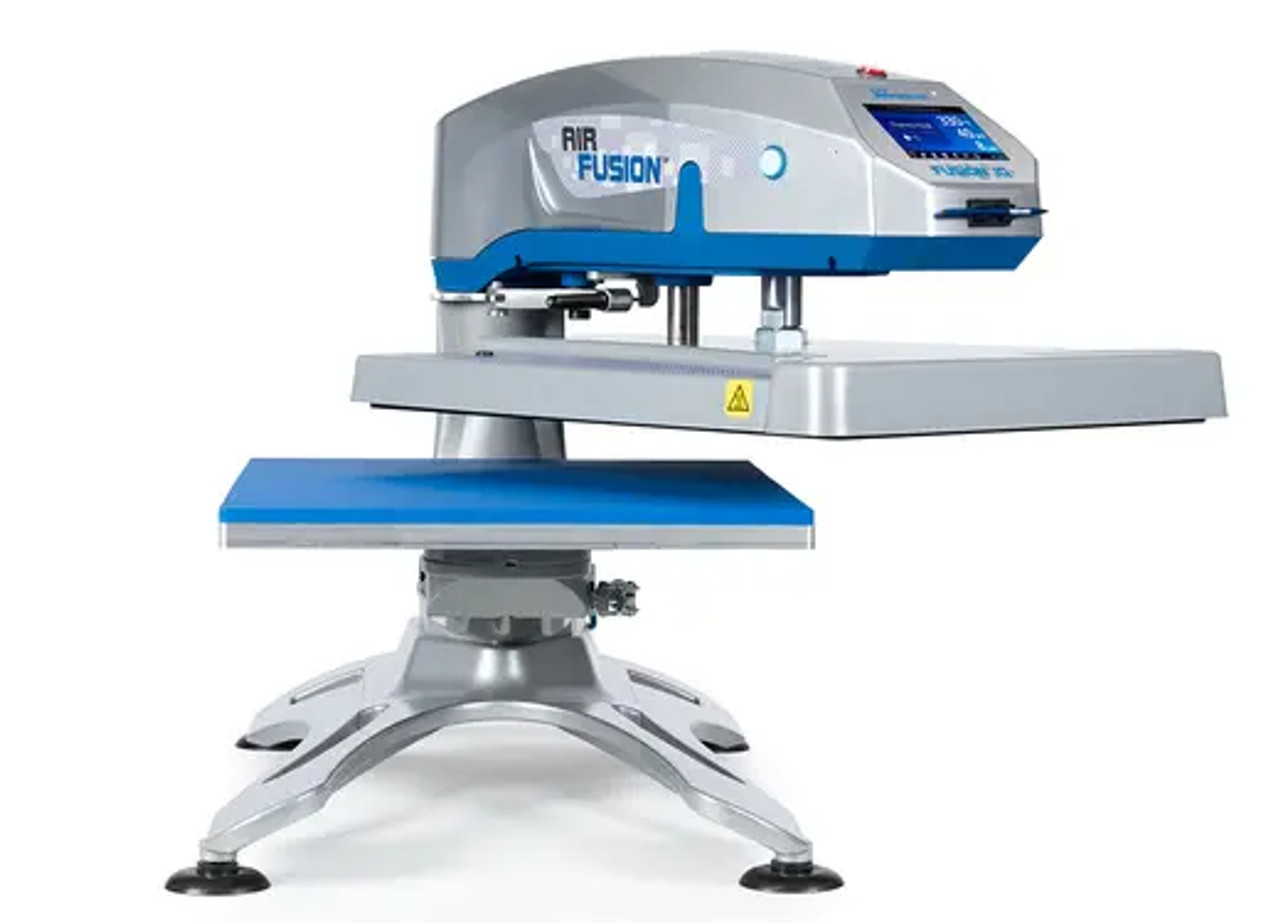

Swing-Away Upper Platen: Keeps your workspace safe from heat while allowing easy garment layout
-
Fusion IQ® Touchscreen Control: Advanced smart interface with cloud-based tracking, job stats, and performance monitoring
-
16" x 20" Heated Platen: Ideal size for full-size transfers and large garments
-
Threadability™ Design: Load garments from any side for faster positioning
-
Quick-Change Platens: Adapt to different items or sizes quickly
-
Made in the USA by Hotronix®
-
UL/ULC/CE Certified for professional safety compliance
Perfect For:
-
High-volume heat transfer production
-
Print shops with limited floor space
-
Custom t-shirt and hoodie businesses
-
HTV, sublimation, DTF, and screen print transfers
-
Operators who need consistent, fatigue-free pressure
Technical Specifications:
-
Platen Size: 16" x 20"
-
Power: 120V, 15 Amps, 1800 Watts
-
Air Compressor Requirement: 0.5 CFM at 100 PSI (not included)
-
Weight: Approx. 120 lbs
-

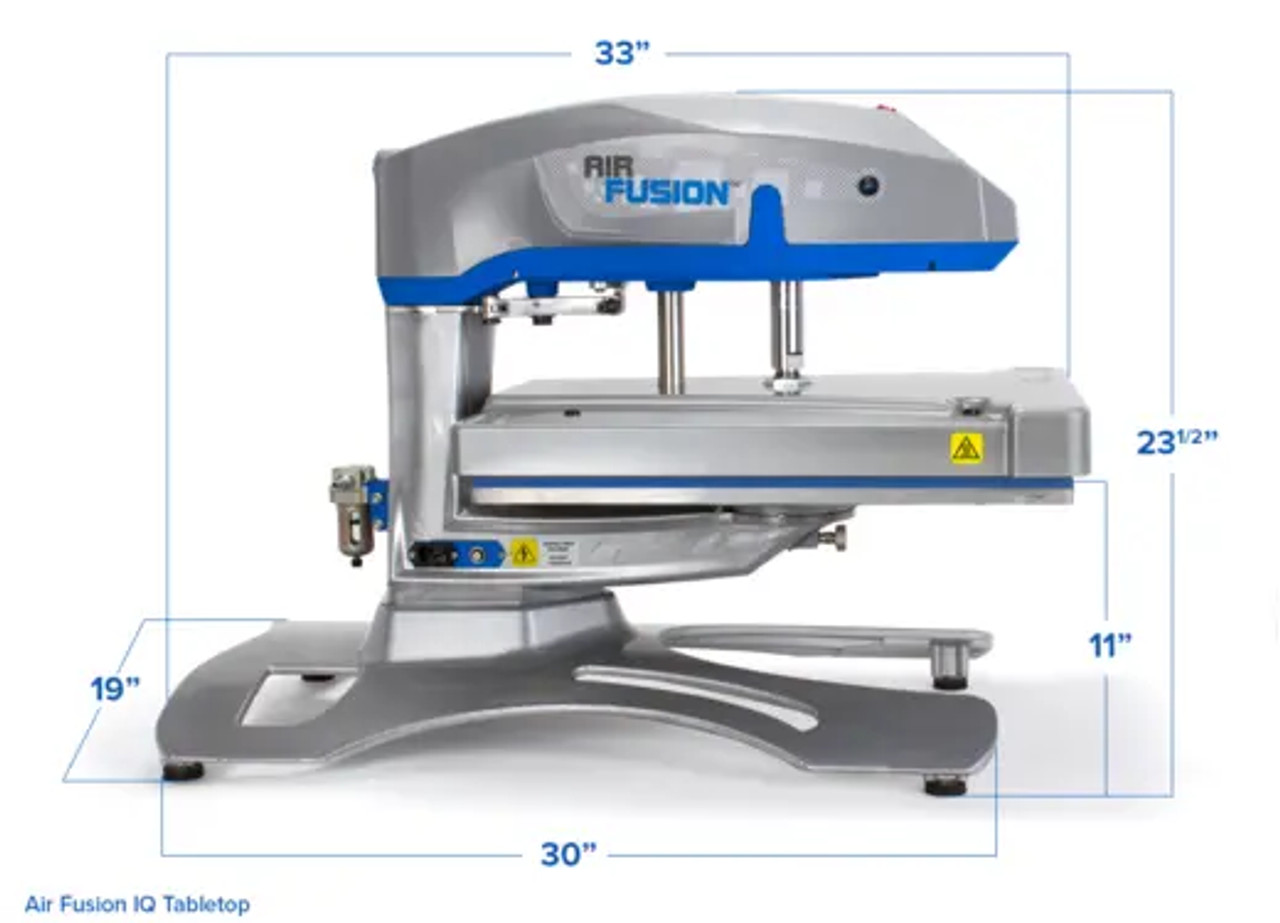

Shipping Dimensions: 36" x 24" x 24"
-
Warranty: Lifetime on heating element, 5 years on framework, 2 years on electronics
