Product Description
STS Inks XPD‑924D 24″ DTF Printer
SKU: XPD‑924D • Category: DTF Printers
Price: $24,995 (USD) | Inquire Now | APPLY FINANCING
? Product Overview
A premium direct-to-film printer tailored for high-output production needs. The XPD‑924D features staggered dual AccuFine HD printheads for smooth gradations and sharp detail, plus the industry’s fastest dual-head printing at up to 188 ft²/hr—all while maintaining superior print consistency.
?️ Key Features
Industrial-Grade Print Engine
-
Dual AccuFine HD printheads with four-level height adjustment (1.5–4.0 mm) deliver up to 1200×1200 dpi quality.
-
Dropmaster 2 automatically aligns bi-directional printing; Feed Master optimizes media feeding; i‑screen print effects help eliminate banding.
Built-In White Ink Circulation
-
Continuous white ink flow prevents sediments in the print path, reducing maintenance and boosting uptime.
High-Speed Performance
-
Max print area: 24.5″ wide; speeds up to 17.5 m²/hr (188 ft²/hr) in high-speed mode and 13.5 m²/hr (145 ft²/hr) in production mode.
-
Supports DTF film rolls ≤ 5.9″ diameter (2″/3″ cores), ≤ 66 lb.
Robust Build & Enhanced Workflow
-
Heavy‑duty aluminum rail, side-mounted panel, integrated LED lighting for easy maintenance.
-
Front dryer cuts ink drying time by ~20%; media remainder tracking and auto page‑feed sensors assist operation.
-
Bundled with UNINET Digital Factory RIP 11 or inedit® neoStampa 11, complete with pre-installed color profiles
⚙️ Technical Specifications
| Specification | Details |
|---|---|
| Print Technology | Drop-on-demand Micro Piezo |
| Max Resolution | 1200×1200 dpi (also 300/600/900 dpi modes) |
| Media Width | Up to 600 mm (24″); print width 24.5″ |
| Media Thickness | 0.3 – 2.8 mm across four height settings |
| Max Speed | 17.5 m²/hr (188 ft²/hr) – high-speed; 13.5 m²/hr – quality mode |
| Interface | Gigabit Ethernet (1000BASE‑T) |
| Power | AC 100–220 V ±10%, 50/60 Hz |
| Operating Conditions | 20–26 °C; 40–55% RH |
| Power Consumption | ≤70 W active / ≤30 W standby |
| Printer Size | 70.7″×35.2″×56.5″ (WxDxH) incl. stand |
| Weight | 140 kg body + 32 kg stand (approx. 393 lb total) |
? What’s Included
-
STS XPD‑924D printer with dual printheads
-
Digital Factory RIP 11 or inedit neoStampa software
-

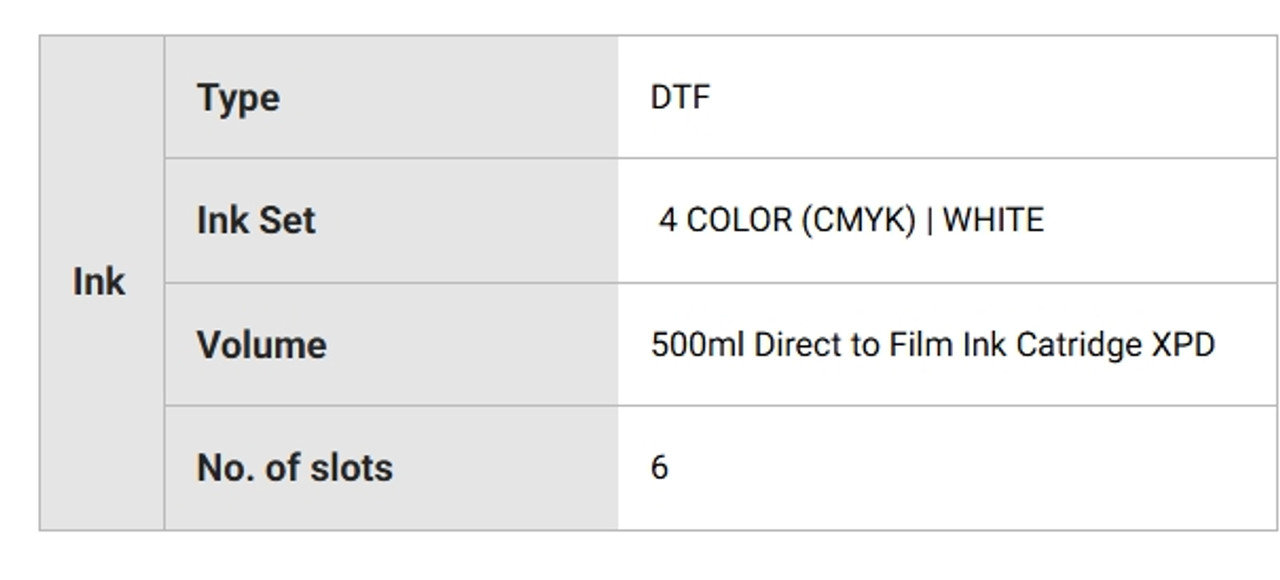

Six 500 mL ink cartridges (CMYK+White + Cleaning)
-
Starter film roll, powder, and cleaning supplies
-
1-year limited warranty
-
Options for stand-alone or combo with S‑20 24″ powder shaker (ask for quote)
? Why Choose This Printer?
-
Elite Productivity – Dual-head setup with speeds approaching 190 ft²/hr without compromising print sharpness.
-
Maximum Uptime – White ink circulation and auto-cleaning significantly reduce maintenance.
-
Ease of Use – Automated alignment, media tracking, and RIP software with pre-configured profiles speed up production.
-
Professional Output – Excellent washability, elasticity, and soft hand-feel meet AATCC standards
✅ Perfect For
-
Garment decorators & fulfillment centers
-
High-volume production on textiles, cotton blends, denim, leather, nylon, silk
-
Businesses aiming for ultra-soft, vibrant, stretch-resistant transfers
?️ Optional Accessories
-
STS S‑20 24″ Powder Shaker – Even TPU binder application with IR drying, HMI controls, HEPA filtration
-
Rolls of DTF film & transfer powders (e.g., P‑6 low‑migration, P‑7 soft touch)
-
Cleaning cartridges and maintenance kits
? Ready to Order?
Contact our Sales Team to:
-
Check availability & lead times
-
Request pricing on combo bundles
-
Arrange onsite installation & training
✅ Eco-Certification & Financing
-
Eco Passport certified for sustainable materials
-
Financing options available — ask for details
? Downloadable Resources
-
Product Brochure
-
Usage & Warranty Documentation
-
Eco Passport Certificate
