Product Description

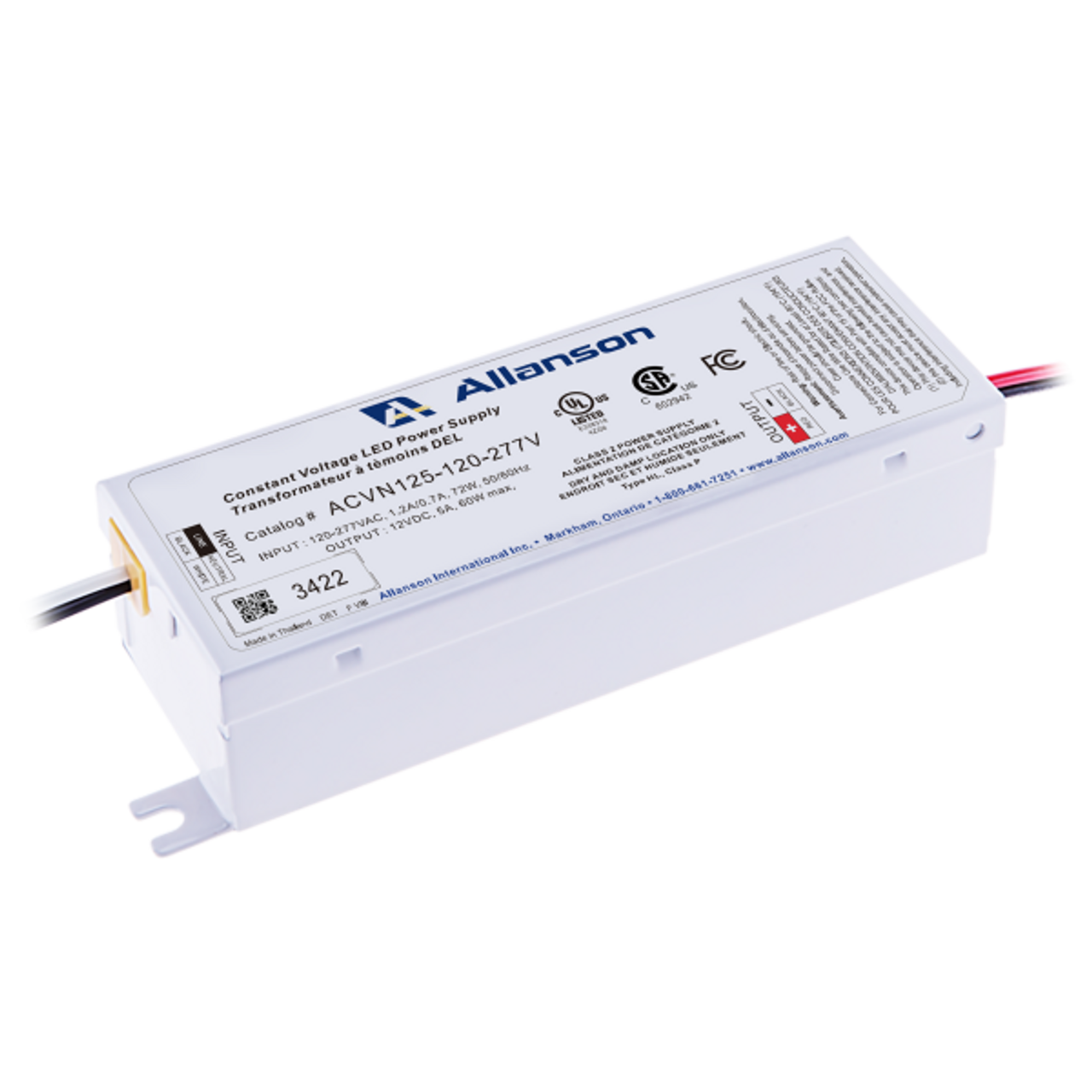

Power your LED signage and lighting systems with confidence using the Allanson ACVN125-120-277V 60W 12V Power Supply. Designed for both indoor and outdoor dry/damp locations, this Class 2 electronic LED power supply is engineered for reliable, safe, and efficient operation across a wide range of applications.
With universal input voltage (120-277V) and stable 12V DC output, this unit offers flexibility, longevity, and full compliance with NEC and local electrical codes. The compact housing and high-performance design make it ideal for powering LED modules in channel letters, box signs, and architectural lighting installations.
Key Features:
-
60-Watt Output for efficient LED system power
-
120–277V AC Universal Input for commercial flexibility
-
12V DC Output (±3%) for stable and consistent LED operation
-
5A Output Current handles multiple modules in a single load
-
Compact Size for easy integration: 5.51" x 1.69" x 1.18"
-
UL / CSA Certified for trusted safety and reliability
-
Wide Operating Temperature Range: -40°C to 55°C
-
Supports Dry and Damp Environments
Applications:
-
LED channel letters
-
Box sign illumination
-
LED strip lighting
-
Retail display backlighting
-
Architectural and cove lighting
-
Indoor and outdoor installations (dry or damp rated)
Installation Notes:
-
Bond all metal parts and the case to ground per NEC/local code
-
Use 18 AWG or thicker wire; max recommended distance from power supply to LED: 9 ft (for longer runs, use heavier gauge)
-
Output wires: Red = Positive (+), Black = Negative (–)
-
Do not connect outputs of multiple power supplies together
-
Designed to restart automatically if a fault condition is removed
