Product Description
Arlon DPF 390 Wide-Width Backlit Substrate - Seamless Up to 16'4" - 19.5-oz Flexible Material - Double-Sided Printable - 6-Year Outdoor Durability
Seamless Large-Format Backlit Excellence
Arlon DPF 390 represents a breakthrough in large-format backlit signage technology, offering seamless widths up to an unprecedented 16'4" for creating massive illuminated signs without visible seams or joints. This satin white 19.5-oz. wide-width flexible substrate is specifically engineered for large sign faces where durability and uniform light transmission are critical to professional results. The 22-mil thick reinforced vinyl substrate delivers exceptional strength (180 lbf/linear in tensile strength) while maintaining the flexibility needed for installation on curved surfaces, light boxes, and awning frames. With 19-21% optimized light transmission and >75% opacity, DPF 390 ensures brilliant, even illumination that makes graphics pop day or night without hot spots or dark areas that plague inferior materials. The double-sided printable surface accommodates a wide variety of decoration methods including direct digital printing (Eco-Solvent, Solvent, UV, Latex), screen printing, PSA translucent vinyl application, and heat transfer methods—giving you maximum flexibility in production workflows. The satin finish (10-20 gloss units) provides a professional appearance that reduces glare while maintaining excellent print quality and color vibrancy. Rated for 6-year outdoor durability and certified by California State Fire Marshal, UL, NFPA 701, and ASTM E84, DPF 390 meets the most stringent safety and performance requirements for commercial installations. The flat, smooth surface minimizes dirt settlement and makes graphic application easier, while the reinforced construction (500x500 denier yarn, 18 threads/sq in) resists tearing and maintains dimensional stability throughout extreme temperature ranges (-41°F to 176°F service temperature). Whether you're fabricating massive retail light boxes, LED menu boards, fluorescent sign cabinets, illuminated awnings, or architectural backlit features, DPF 390 delivers the seamless perfection, uniform illumination, and long-term durability that distinguish professional installations from amateur work. Available in seven seamless widths from 3'6" to 16'4", this versatile substrate eliminates the limitations and compromises of seamed materials.
? Revolutionary Seamless Widths
The game-changing advantage of seamless construction up to 16'4":
Eliminate Visible Seams
Create massive backlit signs without seams, joints, or overlaps. Graphics appear continuous and professional from edge to edge, eliminating the visual disruption that ruins inferior installations.
Uniform Light Distribution
Seamless construction prevents light streaks and shadows at seam lines. Illumination is consistent across the entire sign face for professional day and night appearance.
Faster Fabrication
No time wasted measuring, cutting, and joining multiple panels. Install one continuous piece and you're done—dramatically faster than seamed alternatives.
Reduced Installation Errors
Seam alignment is the #1 source of installation errors in large format. Seamless material eliminates this problem entirely—foolproof installation every time.
Superior Structural Integrity
No seams mean no weak points where failure can occur. The entire sign face is equally strong throughout, with no vulnerable overlap areas.
Professional Appearance
Seamless construction is the hallmark of premium installations. Differentiate your work with the quality that customers notice and competitors can't match.
Available in seven seamless widths from 3'6" to 16'4"—choose the width that best fits your project without compromise.
? Optimized Light Transmission
Engineered for perfect backlit illumination:
- 19-21% Light Transmission: Optimized transmission allows brilliant illumination without excessive light bleed or wasted energy
- >75% Opacity: High opacity prevents show-through from behind while allowing controlled light passage
- Uniform Distribution: Even light transmission across entire surface—no hot spots or dark areas
- LED Compatible: Works perfectly with modern LED lighting systems for energy-efficient illumination
- Fluorescent Compatible: Equally effective with traditional fluorescent tube lighting
- Color Accuracy: Neutral white base ensures true color reproduction of printed graphics
- Day/Night Performance: Graphics look professional in daylight and illuminate beautifully at night
- Energy Efficiency: Optimized transmission means less wattage required for brilliant results
? Multiple Decoration Methods
Maximum production flexibility with compatibility across all major decoration methods:
Direct Digital Printing
Double-sided printable surface compatible with all major ink systems:
- Eco-Solvent Inks: Environmentally friendly with excellent adhesion
- Solvent Inks: Superior outdoor durability and color vibrancy
- UV Curable Inks: Instant cure, scratch-resistant, brilliant colors
- Latex Inks: Water-based, odorless, immediate handling, HP Latex certified workflow
- Both Sides Printable: Create reversible graphics or different designs on each side
Screen Printing
- UV screen printing compatible for bold, vibrant graphics
- Smooth surface ensures excellent ink laydown
- High-volume production capability
- Specialty inks and effects possible
PSA Translucent Vinyl Application
- Compatible with cast translucent vinyl films
- Apply cut vinyl graphics or full-coverage translucent prints
- Smooth surface for bubble-free application
- Mix and match decoration methods for creative effects
Heat Transfer Decoration
- Accepts heat transfer decoration methods
- Expands creative possibilities
- Specialty effects and textures achievable
Key Features & Benefits
- Seamless Widths: Up to 16'4" (4.978m) seamless—eliminate visible seams and joints
- Seven Width Options: 3'6", 4'6", 6'6", 8'6", 10'6", 12'6", 16'4" to fit any project
- 19.5 oz Weight: Substantial material with excellent stability and durability
- 22-Mil Thickness: Reinforced construction for long-term performance
- Double-Sided Printable: Graphics on both sides or reversible designs
- Universal Ink Compatibility: Eco-Solvent, Solvent, UV, Latex direct printing
- Optimized Light Transmission: 19-21% for brilliant, even illumination
- High Opacity: >75% prevents show-through
- Satin Finish: Professional appearance with reduced glare
- 6-Year Outdoor Durability: Long-term performance in exterior applications
- Reinforced Construction: 500x500 denier yarn, exceptional strength
- Temperature Stable: Maintains form -41°F to 176°F
- Fire Certified: California Fire Marshal, UL, NFPA 701, ASTM E84
- Smooth Surface: Minimizes dirt, easier graphic application
- Flexible Substrate: Conforms to curved surfaces and frames
Applications

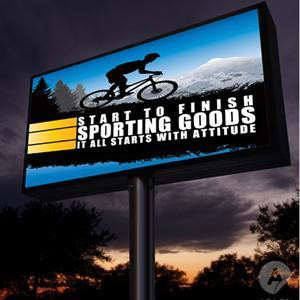

? Backlit Illuminated Signs
- Large-format retail signage
- Shopping center directories
- Wayfinding systems
- Building identification
- Monument signs
- Pylon signs
- Channel letter faces
- Architectural features
? Light Boxes
- LED light boxes (large format)
- Fluorescent light boxes
- Menu boards (QSR)
- Drive-thru menu systems
- Retail display boxes
- Airport/transit displays
- Trade show exhibits
- Museum lighting displays
☂️ Awnings
- Commercial awnings
- Restaurant awnings
- Retail storefront awnings
- Building entrance canopies
- Event awnings
- Hospitality awnings
- Branded shade structures
? Retail Applications
- Store fascia signs
- Window displays
- Department signage
- Promotional displays
- Brand walls
- Interior illuminated features
- Point-of-purchase displays
? Quick Service Restaurants
- Drive-thru menu boards
- Interior menu boards
- Brand signage
- Promotional signage
- Window graphics
- Directional signage
? Specialty Applications
- Stadium/arena signage
- Convention center graphics
- Casino signage
- Theater marquees
- Automotive dealerships
- Healthcare wayfinding
- Educational facilities
Technical Specifications
| Product Name: | Arlon DPF 390 |
| Manufacturer: | Arlon Innovations |
| Material Type: | Flexible Reinforced Vinyl Substrate |
| Finish: | Satin White |
| Weight: | 19.5 oz/sq yd (650 g/sq m) |
| Thickness: | 22-mil (0.56 mm) |
| Yarn (Denier): | 500 x 500 |
| Thread Count: | 18/sq in (7/sq cm) Warp & Weft |
| Tensile Strength: | 180 lbf/linear in Warp / 150 lbf/linear in Weft |
| Elongation: | 33% |
| Tear Resistance: | 23 lbf Warp / 20 lbf Weft |
| Opacity: | >75% |
| Gloss: | 10-20 Gloss Units (Satin) |
| Light Transmission: | 19-21% |
| Outdoor Durability: | 6 Years (Unprinted) |
| Service Temperature: | -41°F to 176°F (-42°C to 80°C) |
| Best Tensioning Temp: | 50°F to 100°F (10°C to 35°C) |
| Print Compatibility: | Eco-Solvent, Solvent, UV, Latex |
| Printable Sides: | Double-sided |
| Shelf Life: | 1 Year (proper storage) |
| Fire Rating: | NFPA 701-2004 Test 1 |
| Additional Certifications: | California Fire Marshal, UL, ASTM E84 |
Available Seamless Widths
| Width (Imperial) | Width (Metric) | Length | Coverage per Roll | Best Applications |
|---|---|---|---|---|
| 3'6" | 1.066 m | 164' (50 m) | 574 sq ft | Small light boxes, narrow awnings |
| 4'6" | 1.37 m | 164' (50 m) | 738 sq ft | Menu boards, medium light boxes |
| 6'6" | 1.98 m | 164' (50 m) | 1,066 sq ft | Standard signage, awnings |
| 8'6" | 2.59 m | 164' (50 m) | 1,394 sq ft | Large signs, wide awnings |
| 10'6" | 3.2 m | 164' (50 m) | 1,722 sq ft | Extra-large signage |
| 12'6" | 3.81 m | 164' (50 m) | 2,050 sq ft | Massive retail signs |
| 16'4" | 4.978 m | 164' (50 m) | 2,679 sq ft | Maximum width applications, architectural features |
Installation & Fabrication Guidelines
Tensioning Temperature
- Best Temperature: 50°F to 100°F (10°C to 35°C) during tensioning
- Service Range: Maintains form -41°F to 176°F (-42°C to 80°C) after installation
- Temperature Stability: Won't sag or distort within service range
Handling & Preparation
- Do not fold tightly or bunch—creasing or wrinkling may occur
- If crease occurs, apply heat with 1000-watt heat gun to remove
- Surface cleaning: lint-free cloth with 1:1 isopropyl alcohol/water mixture
- After cleaning, dry with lint-free cloth before graphic application
- Smooth surface allows for easy, bubble-free graphic application
Overlapping Sections (When Necessary)
For installations requiring joined sections:
- Overlap sections preferably 1/4" (minimum 1/8")
- Tape cutting strip (2" x 1/16" thin steel) onto substrate
- Lay both vinyl pieces over cutting strip
- Place straight edge where pieces cover strip
- Cut through all layers with sharp utility knife
- Remove excess film and cutting strip
- Squeegee to create uniform overlap with straight edges
Packaging & Shipping
- Roll on inner core minimum 6" (76 cm) diameter
- Graphics facing outward when rolling
- Use appropriate, sure-fitting shipping core
- Protect from moisture and temperature extremes
Printing Recommendations
Eco-Solvent & Solvent Inks
- Allow adequate drying time before handling
- Excellent adhesion to satin surface
- Superior outdoor durability
- Vibrant color reproduction
UV Curable Inks
- Instant cure for immediate handling
- Scratch-resistant finish
- Brilliant color saturation
- Excellent for high-volume production
Latex Inks
- Water-based, environmentally friendly
- Odorless—no outgassing required
- Immediate handling after printing
- Safe for indoor environments
- Compatible with HP Latex printer workflow
Screen Printing
- UV screen inks recommended
- Smooth surface ensures excellent ink laydown
- Bold, opaque graphics achievable
- Specialty effects possible
? Fire Safety Certifications
Meets the most stringent fire safety requirements:
- NFPA 701-2004 Test 1: Passes standard fire resistance test for flame propagation
- California State Fire Marshal: Approved for use in California commercial installations
- UL (Underwriters Laboratories): Third-party safety certification
- ASTM E84: Fire rating compliance for building materials
These certifications are critical for commercial installations, building code compliance, insurance requirements, and public safety. DPF 390 provides the documentation needed for permitting and inspection approval.
Storage & Shelf Life
- Shelf Life: 1 year from factory shipment
- Storage Temperature: 60°F to 75°F (16°C to 24°C) preferred
- Maximum Humidity: 50% relative humidity
- Environment: Cool, dry location
- Protection: Free from excessive moisture, temperature extremes, direct sunlight
- Original Packaging: Keep in box until ready to use
Overlaminate Recommendations
For printed graphics requiring additional protection:
- Optically Clear Overlaminates: Recommended for digital prints requiring UV protection
- Cast Translucent Overlaminates: Compatible with cast translucent vinyl films
- Light Transmission Consideration: Choose overlaminates that maintain desired light transmission
- UV Protection: Overlamination extends life of printed graphics significantly
Consult with overlaminate manufacturers to ensure compatibility and optimal light transmission for backlit applications.
Product Highlights
- ✓ Seamless widths up to 16'4" - eliminate visible seams and joints
- ✓ Seven width options - 3'6" to 16'4" fit any project size
- ✓ 19-21% light transmission - optimized for brilliant, even illumination
- ✓ >75% opacity - prevents show-through while allowing light
- ✓ Double-sided printable - both sides or reversible graphics
- ✓ Universal ink compatibility - Eco-Solvent, Solvent, UV, Latex
- ✓ Multiple decoration methods - digital, screen, PSA vinyl, heat transfer
- ✓ 6-year outdoor durability - long-term exterior performance
- ✓ 22-mil reinforced construction - 500x500 denier strength
- ✓ Temperature stable - maintains form -41°F to 176°F
- ✓ Fire certified - NFPA 701, California Fire Marshal, UL, ASTM E84
- ✓ Smooth satin surface - minimal dirt, easy graphic application
- ✓ Flexible substrate - conforms to curved surfaces
- ✓ Professional appearance - satin finish reduces glare
Seamless vs. Seamed Material Comparison
| Factor | DPF 390 Seamless | Seamed Material |
|---|---|---|
| Visible Seams | None - continuous surface | Visible seam lines |
| Light Distribution | Uniform across entire sign | Light streaks at seams |
| Appearance | Professional, seamless | Seams visible day & night |
| Installation Time | Fast - one piece | Slow - multiple pieces to align |
| Installation Errors | Minimal - no alignment needed | Common - seam misalignment |
| Structural Integrity | Uniform throughout | Weak points at seams |
| Maximum Width | Up to 16'4" seamless | Limited by material width |
| Fabrication Complexity | Simple - cut and install | Complex - measure, align, join |
| Professional Value | Premium - seamless quality | Standard - visible limitations |
| Long-Term Performance | Excellent - no seam failure | Risk of seam separation |
Frequently Asked Questions
Q: What makes DPF 390 suitable for large backlit signs?
A: Three critical factors: (1) Seamless widths up to 16'4" eliminate visible seams that ruin large installations, (2) 19-21% optimized light transmission ensures brilliant, even illumination without hot spots, and (3) 22-mil reinforced construction (500x500 denier) provides the strength to tension across large frames without sagging. Together, these create the perfect substrate for professional backlit signage.
Q: Can I print directly on DPF 390?
A: Absolutely! DPF 390 is double-sided printable and compatible with all major ink systems: Eco-Solvent, Solvent, UV Curable, and Latex. This gives you maximum flexibility in production workflows and allows you to create reversible graphics or different designs on each side.
Q: What's the difference between the various widths available?
A: All widths feature the same material specifications—the only difference is width. Choose based on your project requirements: 3'6" and 4'6" for menu boards and small light boxes, 6'6" and 8'6" for standard signage, 10'6" and 12'6" for large retail signs, and 16'4" for maximum-width applications where seamless construction is critical. All widths are 164' long.
Q: How does the 19-21% light transmission compare to other materials?
A: 19-21% is optimized for backlit signage—providing brilliant illumination without excessive light bleed or wasted energy. Lower transmission would make signs too dim; higher transmission would create show-through problems and require more lighting power. This range is the sweet spot for professional backlit applications.
Q: Can I use PSA vinyl on DPF 390?
A: Yes! DPF 390 is compatible with PSA translucent vinyl and cast translucent vinyl films. The smooth satin surface allows bubble-free application of cut vinyl graphics or full-coverage translucent prints. You can mix decoration methods—for example, direct print the background and apply cut vinyl for text.
Q: Is DPF 390 suitable for outdoor awnings?
A: Absolutely! With 6-year outdoor durability, reinforced construction (180 lbf/linear in tensile strength), and temperature stability from -41°F to 176°F, DPF 390 is excellent for outdoor awnings. It resists tearing, maintains tension, and withstands weather extremes while providing the flexibility needed for awning frames.
Q: What fire certifications does DPF 390 have?
A: DPF 390 passes NFPA 701-2004 Test 1 and is certified by California State Fire Marshal, UL (Underwriters Laboratories), and ASTM E84. These certifications are critical for commercial installations, building code compliance, and insurance requirements—essential for legal compliance in public spaces.
Q: How do I join sections if I need wider coverage than 16'4"?
A: While seamless is always preferred, sections can be overlapped using the cutting strip method: tape a thin steel strip (2" x 1/16") onto substrate, lay both vinyl pieces over it, cut through all layers with a straight edge and sharp knife, then remove excess and squeegee to create uniform overlap. Overlap 1/4" preferably (1/8" minimum).
Q: Can DPF 390 be used with LED lighting?
A: Yes! DPF 390 works perfectly with modern LED lighting systems. The 19-21% light transmission is optimized for LED illumination, providing brilliant, even lighting with energy efficiency. It's equally compatible with traditional fluorescent tube lighting.
Q: What's the best width for a drive-thru menu board?
A: Most drive-thru menu boards work well with 4'6" or 6'6" widths, depending on the cabinet size. These widths provide seamless coverage for standard menu board dimensions without requiring seams. For extra-large menu systems, 8'6" may be appropriate.
Q: How should I store unused DPF 390?
A: Store in cool, dry environment at 60-75°F with maximum 50% humidity. Keep in original packaging, protect from temperature extremes and direct sunlight. When rolling, use minimum 6" diameter core with graphics facing outward. Shelf life is 1 year under proper storage conditions.
Q: Does the satin finish affect print quality?
A: No—the satin finish (10-20 gloss units) actually enhances print quality by reducing glare while maintaining excellent color vibrancy and detail reproduction. It's the ideal finish for backlit applications where excessive gloss would create unwanted reflections.
Technical Support & Resources
Arlon Innovations provides comprehensive support:
- Technical Data Sheets: Complete specifications and testing data
- Installation Guidelines: Detailed fabrication and installation instructions
- Application Support: Expert assistance for specific projects
- Phone Support: 800.549.9860 / +1 210.798.1900
- Address: 6110 Rittiman Road, San Antonio, TX 78218
- Website: arloninnovations.com
Important Information & Warranty
6-Year Outdoor Durability: Rated as a 6-year outdoor product when properly installed and maintained.
Performance Note: Product performance will vary in each application and is dependent upon composite construction. Arlon Innovations does not guarantee the replication of this data by third parties. None of the data or statements contained herein is intended to warrant the performance of this product. Data is representative and not intended as a manufacturing specification.
Terms & Conditions: All statements, technical information and recommendations published relating to products are based on tests believed to be reliable and within the accuracy of the equipment used to obtain the specific values. Their accuracy or completeness is not guaranteed and the manufacturer makes no warranty with regard thereto. Seller's and manufacturer's only responsibility shall be to replace any quantity of the product proved defective. Seller and manufacturer shall not be liable for injury, loss or damage, direct or consequential, arising out of use or the inability to use the product. Nor shall seller or manufacturer be liable for any costs or expenses incurred in the processing or printing on the product. Before using, user shall determine the suitability of the product for its intended use. User assumes all risk and liability of every nature in connection therewith.
Cleaning & Maintenance: See FLEXcon Industrial's Cleaning Maintenance & Worldwide Warranty documentation for detailed maintenance guidelines.
